nanoTDCR

Real-Time TDCR Counting System and Digital Pulse Processing MCA in One Package. The nanoTDCR is a triple-to-double coincidence ratio (TDCR) liquid scintillation counting system and multichannel analyzer (MCA).

There are two models to choose form: the TD9009 and TD9010. The TD9009 uses only PMT, while the TD9010 uses both PMT and SiPM. This table [pdf] provides a full comparison between the two models.

See a list of key features below and a combined data sheet for a full description of nanoTDCR’s features and specifications for both models.

Features

Data Sheet

Downloads

Support

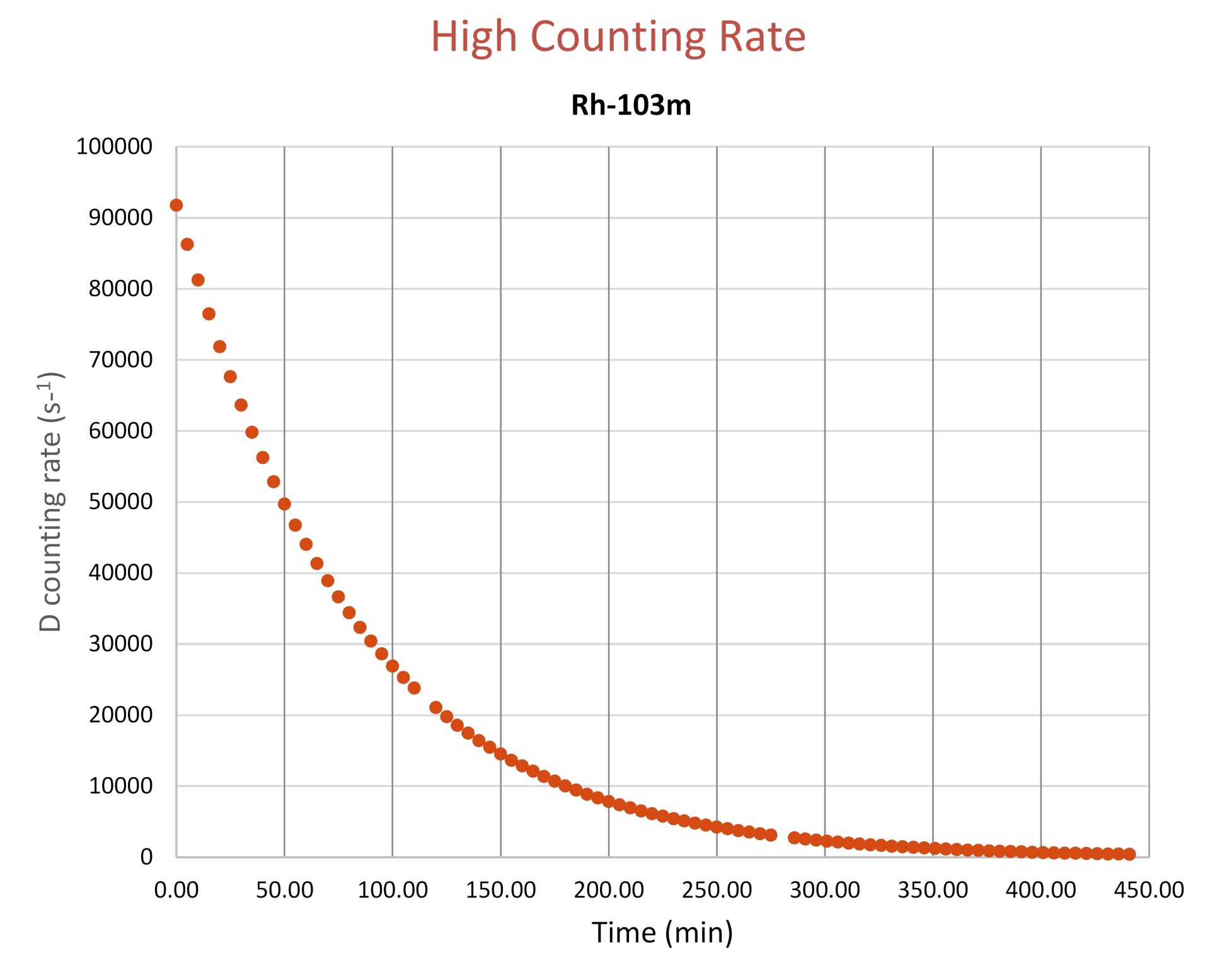

Performance

Enclosure	Dimensions: 3.6″ x 1.5″ x 1″ (92 mm x 38 mm x 25 mm) Weight: 135 g
Spectrum Size	4096 channels
Inputs and Outputs	A, B, C: PMT Inputs / Discriminators Input E: Signals from PMT anode (AC or DC coupled) Input D: Digital Input (3.3V CMOS) or Analog Input (0 to +2.5V) Input/Output R: Digital Input (3.3V CMOS) or Digital Output (3.3V CMOS, Open Drain or Tristate) Output S: Digital Output (3.3V CMOS, Open Drain or Tristate) Output T: Digital Output (3.3V CMOS, Open Drain or Tristate)
DPP Sampling Period	8 ns
DPP Quantization	16 bit
DPP Time Constant	Primary (long) TC: 120 ns to 4.1 µs Secondary (short) TC: 1 ns to 255 ns
Coincidence Logic Signal	Internal: TDCR discriminators A,B,C (TDCR A, TDCR B, TDCR C) External: Input R
Pulse Shapes	Trapezoidal/Triangular
Pulse Shape Flat Top	Adjustable, 0 to 2 µs
Timer Accuracy	Typically < 2ppm
Interface Connectivity	Wired: USB (also serves as power source), Ethernet Wireless: WiFi, Bluetooth
Power Requirements	5V@1A for wall plug
Operating Power	1200mW at 25°C and USB interface
Temperature Operating Range	0°C to +80°C
